Air cooled oil cooler

Looking for AIR COOLED OIL COOLER MANUFACTURERS in India but



1. Not Sure Who to buy hydraulic oil air cooler from.

2. Not Sure Which air cooled heat exchangers to buy.

3. Worried about losing your money by buying the wrong air cooled oil cooler.

Did you know that 73% of Businesses Suffer from losses due To Oil Heating Problems in their machines?

Inefficient Air Cooled Heat Exchangers & Fluid Cooler With Fan can Result in Losses

  1. Of Over 1 crore per annum in a cement plant
  2. Lakhs in CNC/VMC production downtime.
  3. Thousands in inflated electricity bills. Upto 19%
  4. Reduced life of expensive equipment
  5. Loss of efficiency of hydraulic systems on account of internal leakages not visible to the naked eye.
  6. Hot oil is 47% more likely to leak and drip causing loss of expensive hydraulic oils & lubricants
  7. Reduced bearing & bush life resulting in expensive shutdown and maintenance cost
  8. Loss of production due to preventable maintenance shutdown.

Ace Automation Engineers your Expert

Air Cooled Oil Cooler / Oil Cooler Manufacturers in India

Your Hydraulic Oil Air Cooler & Fluid Cooler Manufacturers

  1. Our Hydraulic Oil Air Cooler Are Exported To USA, Saudi Arabia, Philippines, Dubai, Indonesia, Sri Lanka, Slovenia, Bangladesh, Chile, Japan, Oman & Spain.
  2. Only Air Cooled Heat Exchanger Manufacturers in India That Understands Hydraulics & Lubrication Besides Oil Cooling
  3. 28+ Years Of Industrial Experience Across Industries : Cement - Paper - Steel - Oil & Gas - CNC/VMC - Auto Ancillaries -Mining - Material Handling - Hydraulics – Lubrication Systems – SPM – Agriculture
  4. Staggered Fin Brazed Aluminum Plate Design .

Hydraulic Oil Cooler Manufacturers / Hydraulic Oil Cooler Radiator / Oil Cooler Manufacturers



Air cooled oil coolers are known by various names in the industry – Air cooled heat exchangers, hydraulic oil coolers, fan-cooled radiators, etc, These are primarily of two types, based on their construction viz. D Cup Oil Coolers (Bar and Fin Oil cooler) or Plate and Fin type oil coolers. Typically these have plates or bars & fins. The plates or bars act as heat sinks for the heat from the oil or fluid flowing through the heat exchanger. Cooling fins are attached to plates or bars. This increases the surface area for better cooling effectiveness. The heat is transferred from the oil to the plates. The heat in turn is transferred from the plates to the fins. The heat transferred to the fins is dissipated by the airflow generated by the fan.

Keeping in mind the various industries these air cooled heat exchangers/oil coolers find application in, Ace presents 3 series of Oil Coolers - AL series, AW series & AH series.

AL Series: These are Bar and Fin coolers, also known as ‘D’ Cup coolers - available with AC & DC driven fans.

AW Series & AH Series: These are Plate and Fin type coolers - available in AC, DC & Hydraulic motor driven fans.

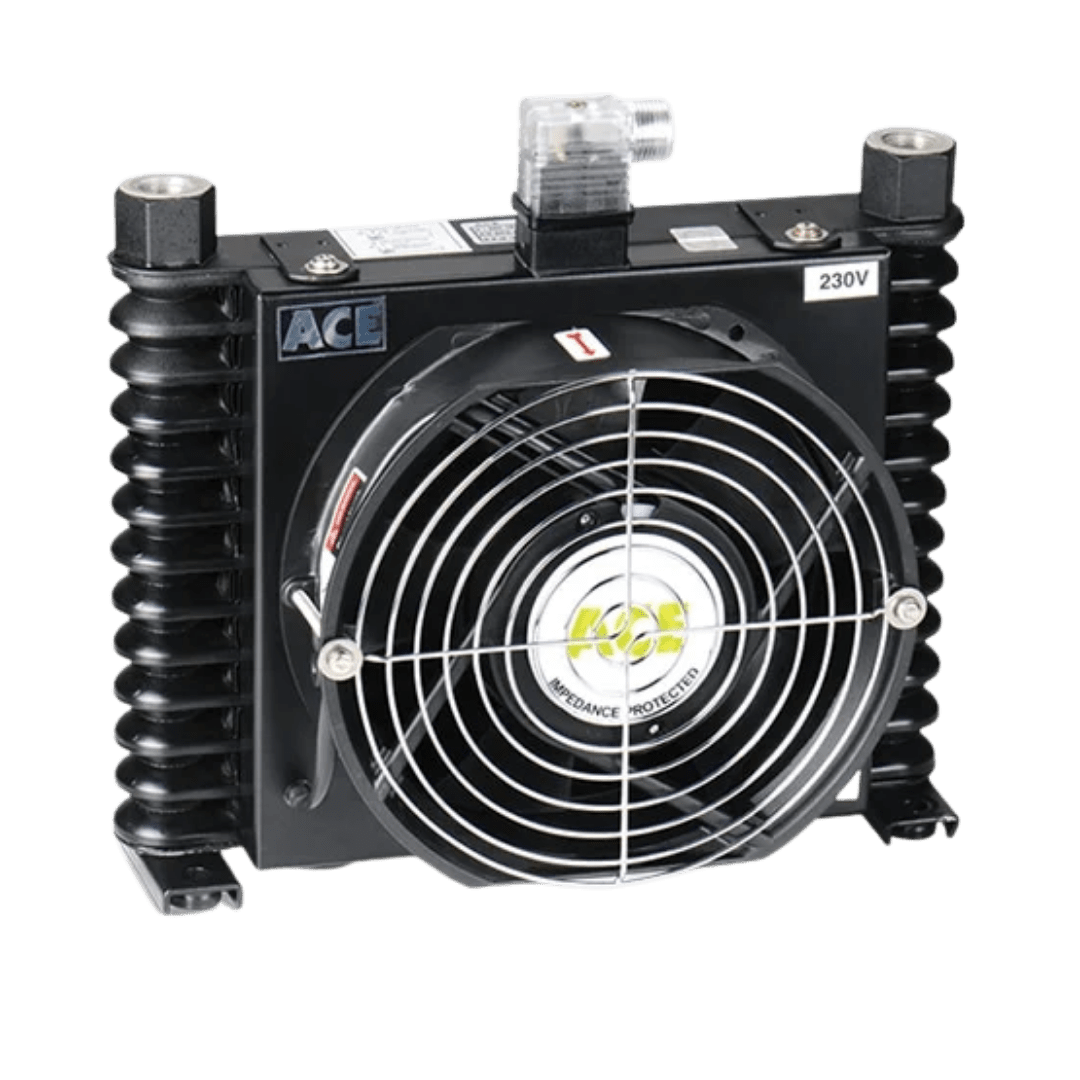

AL Series- Hydraulic Oil Cooler Radiator / Heat Exchanger Specifications
Oil flow handling up to – 1 to 10 LPM.
Cooling capacity up to –1330 Kcal/h (1.55 kW).
These hydraulic oil cooler radiator / heat exchangers are best suited for Drain Line cooling of Variable Displacement pumps.
Application: These small hydraulic oil coolers are mainly used in CNC machines, CNC & VMC Clamping fixtures & other hydraulic power packs with variable displacement pumps.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

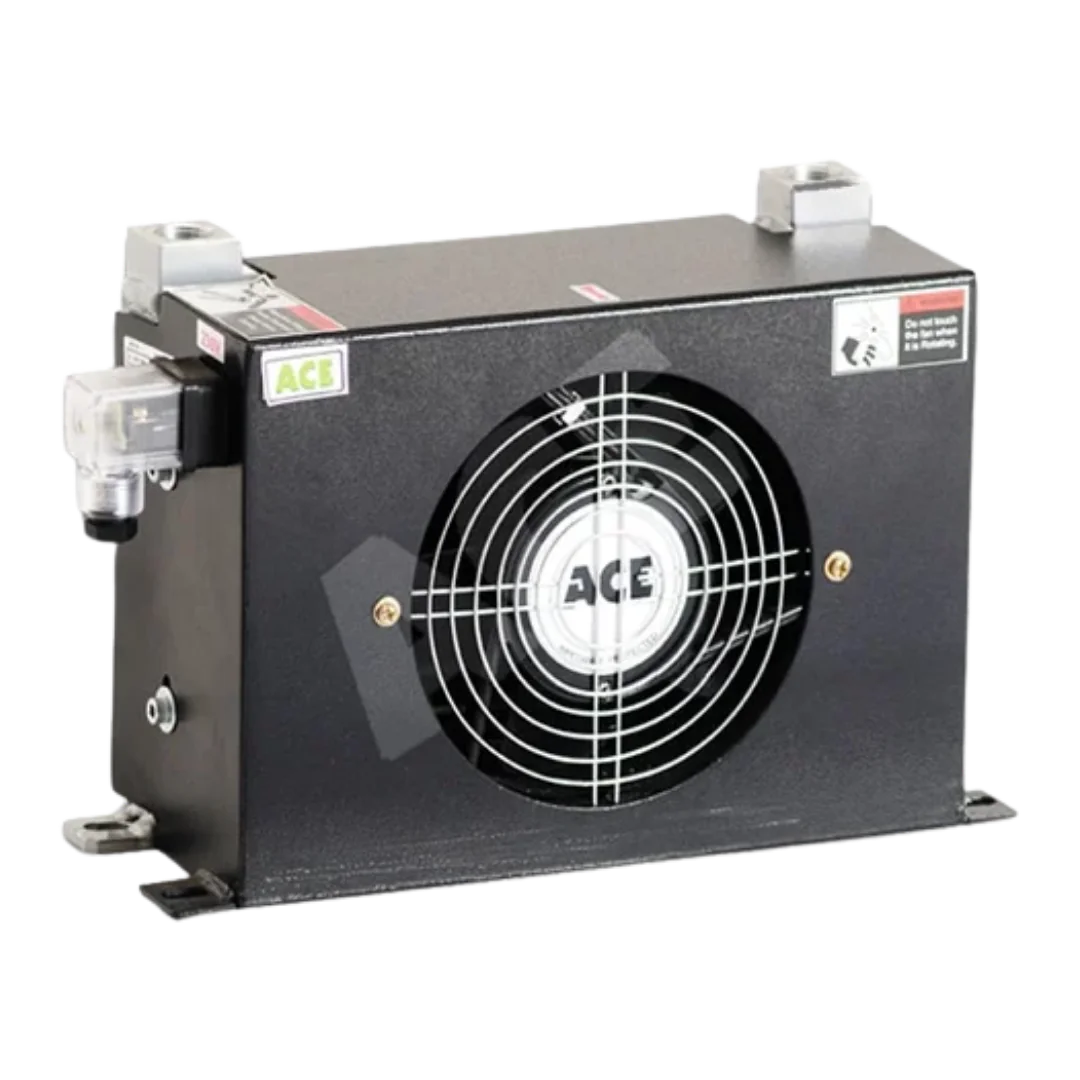

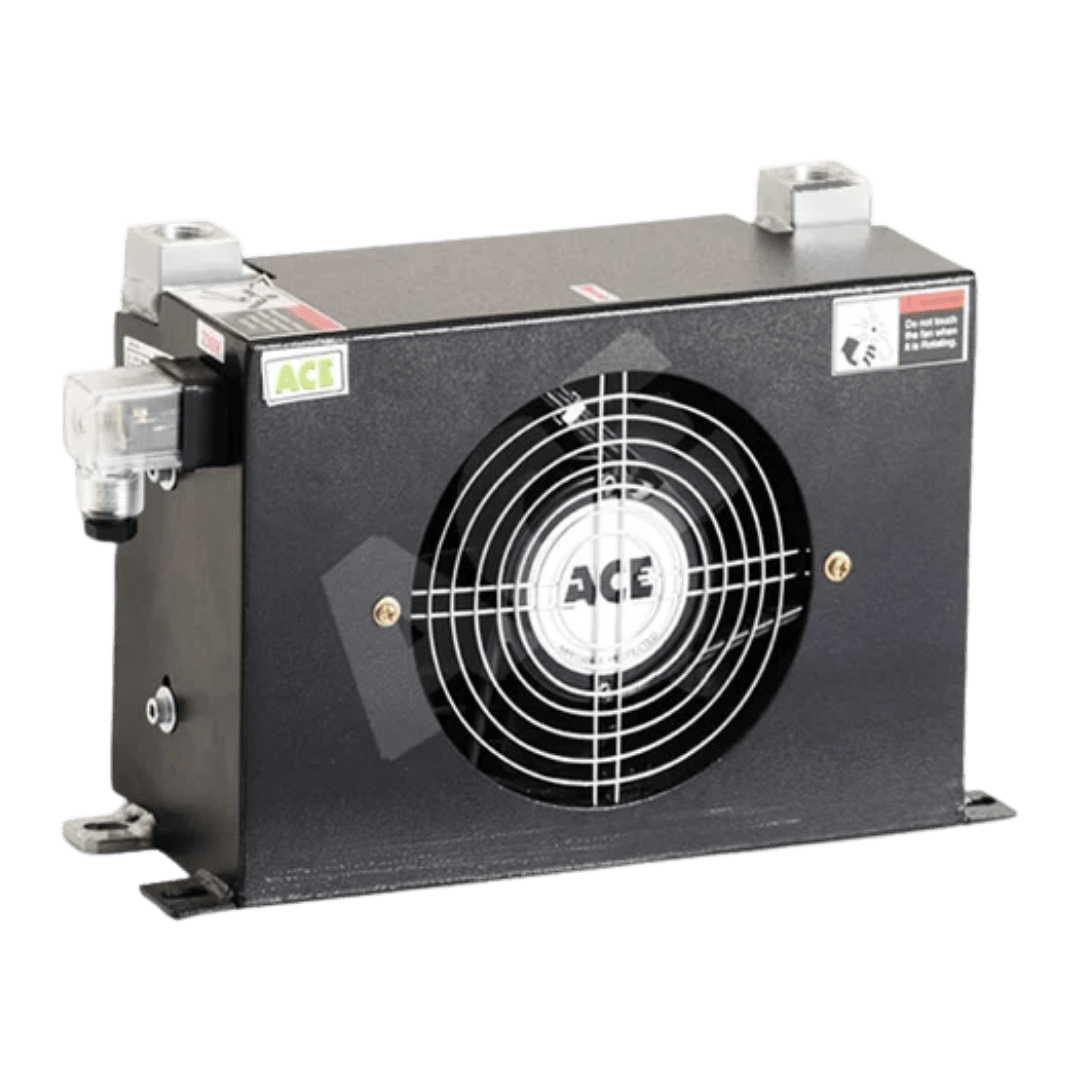

AW Series -Air Cooled Hydraulic Heat Exchangers / Oil Cooler with Fan Specifications
Oil flow handling up to – 1 to 20 LPM.
Cooling capacity up to –1900 Kcal/h (2.2 kW)*.
Application: These small hydraulic oil coolers with single & double fans are mainly used in small hydraulic power packs (0.5HP/0.37 kW to 5HP / 3.7 kW) & small gear boxes, bearings, small lubrication systems.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

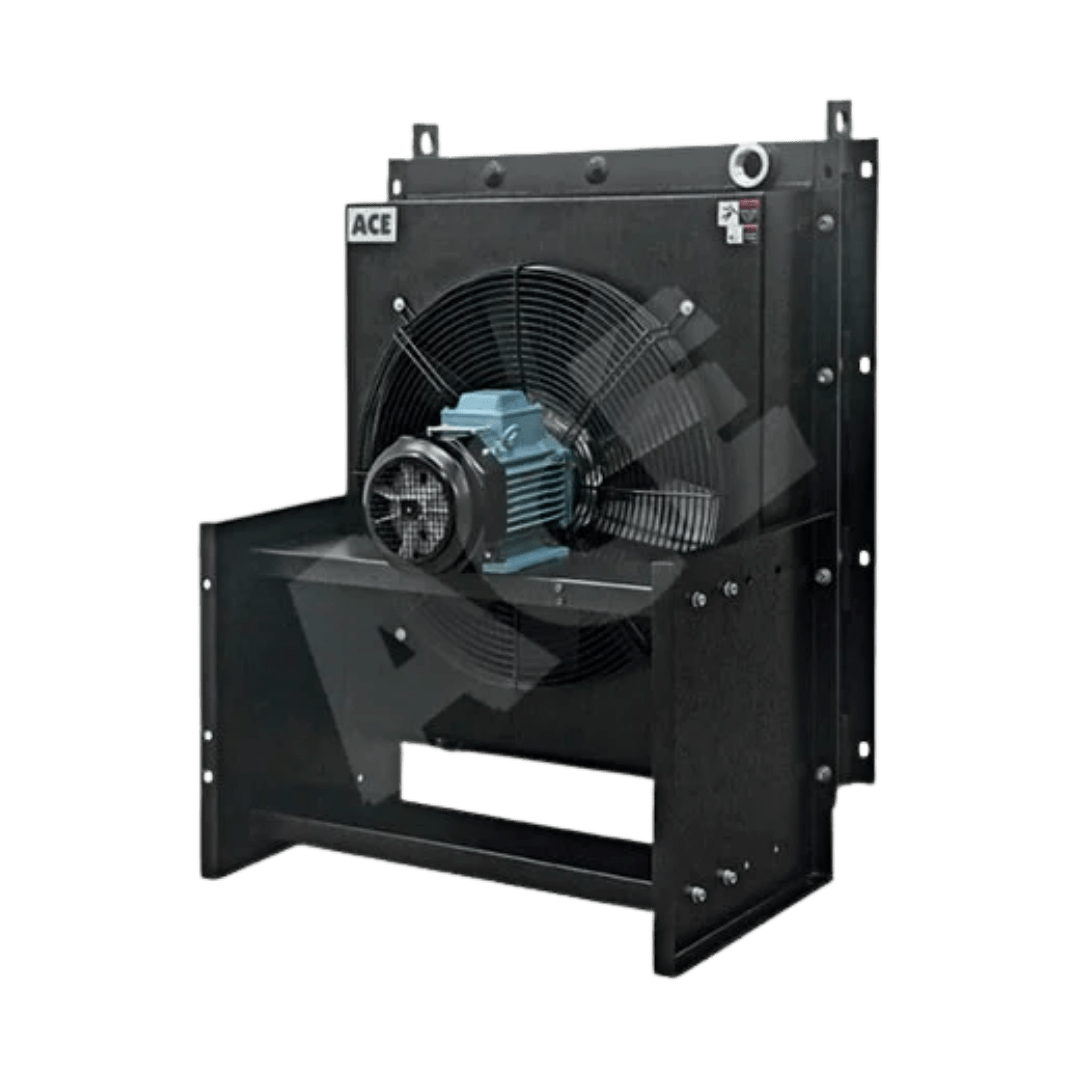

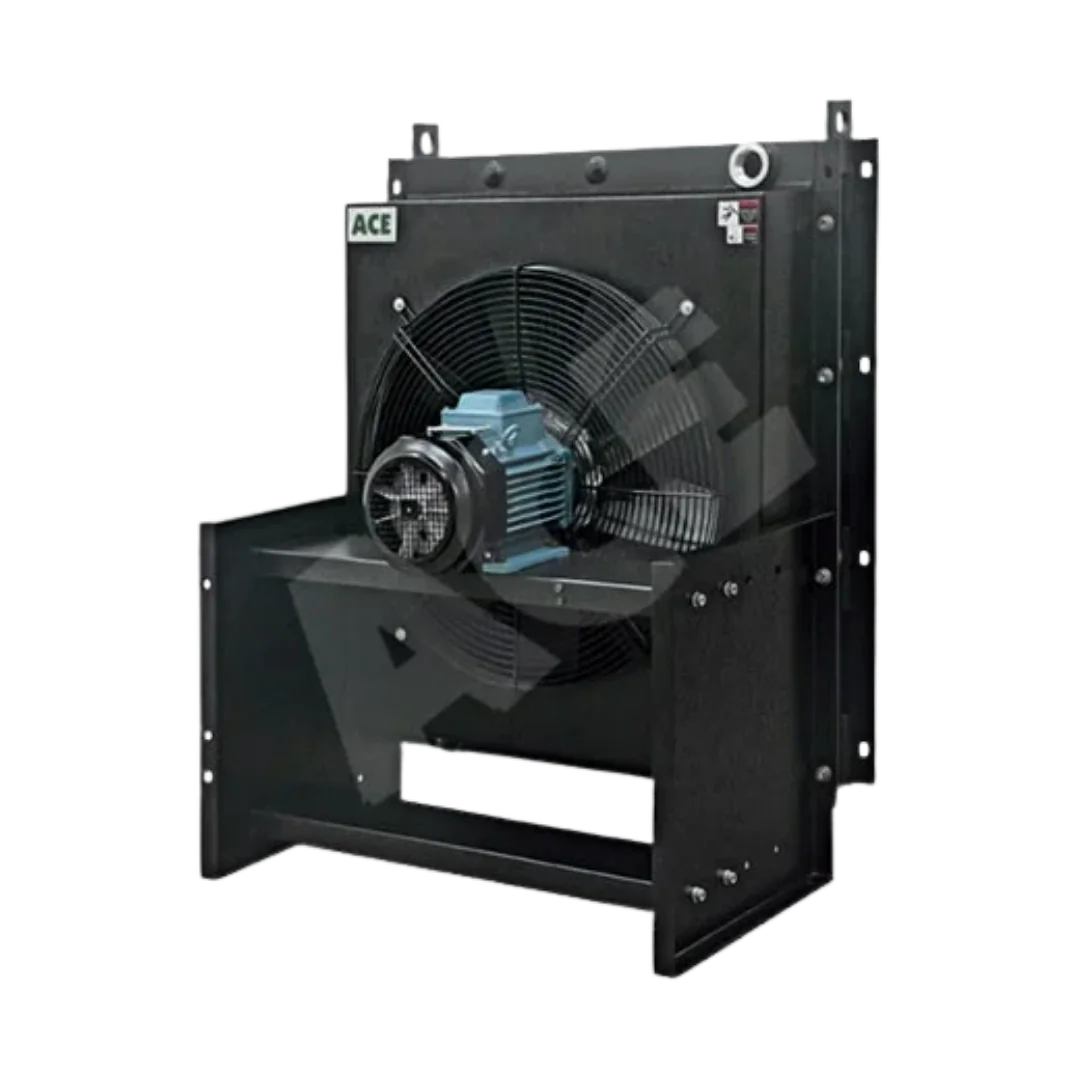

AH Series - Air Cooled Oil Cooler / Hydraulic Oil Cooler with Fan Specifications
Oil flow handling up to – 3 to 400 LPM.
Cooling capacity up to –107500 Kcal/h (125 kW)*.
Application: Small to large hydraulic power packs (1 HP/0.75 kW to 400 HP / 300 kW) & small to large gear boxes, bearings, small to large lubrication systems
Our Client
Oil Cooler Book " air cooled oil cooler

Since its inception in 1992, Ace Automation Engineers has helped some of the top Cement Plants, Steel Mills, Sugar Mills, Power Plants and Paper Mills to REDUCE LOSSES & INCREASE EFFICIENCY. Ace's promoter Mr. Vineet Taneja, a post graduate Mechanical Engineer from BITS, PILANI is also a published author and a trainer. He has conducted Oil Cooler Training sessions for engineers from Toyota Kirloskar Auto parts, Yuken India, Knorr Bremse, Maruti Suzuki, Korus Engineering Solutions, R.K. Hydraulics, Jai Chamundi Tech Pvt. Ltd., Rollform Equipment Pvt. Ltd., Kalson.
